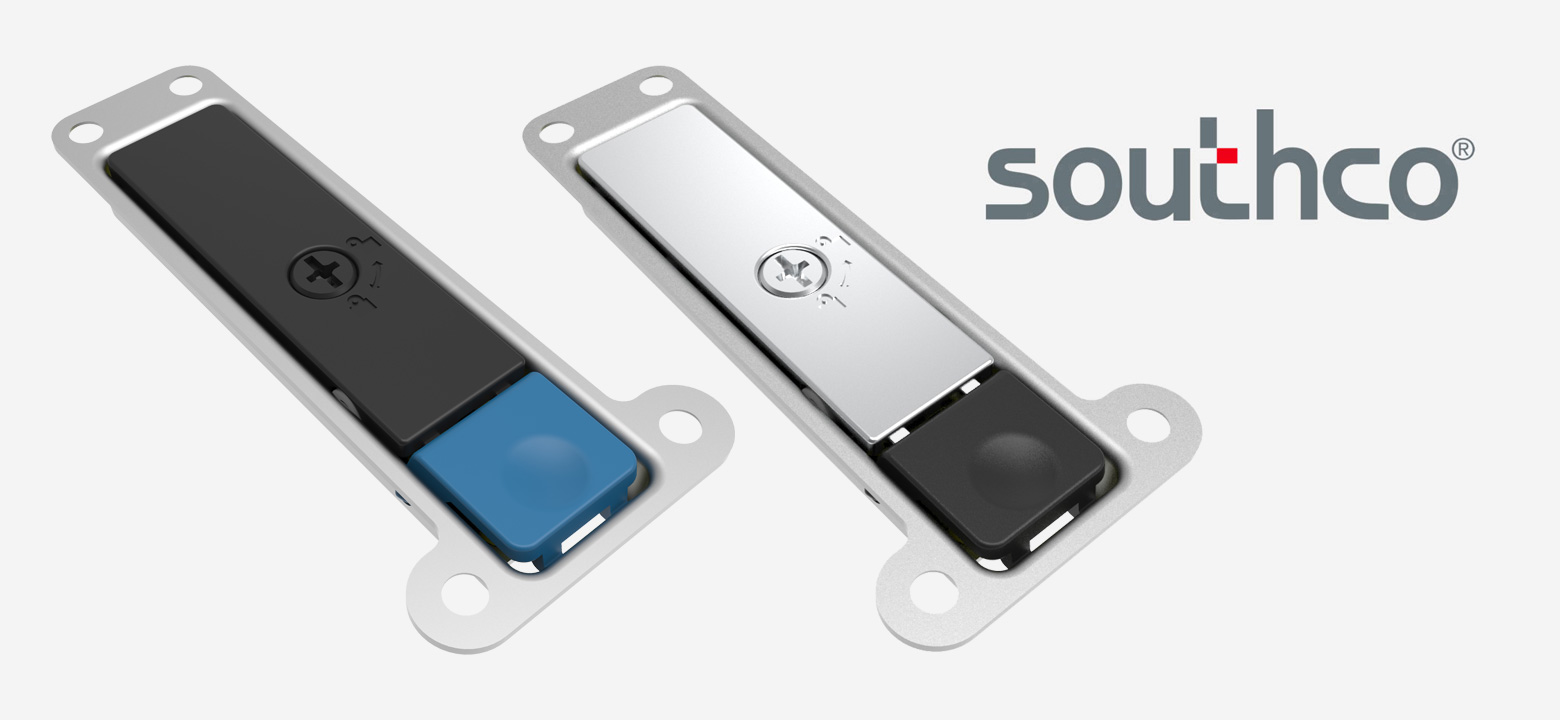

Southco’s NEW Hood Latch

Southco’s successful HH Hood Latch series provides robust performance and a low profile design, allowing it to be used in a variety of applications with space constraints. The HH Hood Latch features an easy-to-use pop-up handle for intuitive operation and simple installation.

Features:

Thin, strong, low profile design.
Intuitive operation with simple pop-up handle.
Convenient installation with a dual engagement hole mounting design.
Secondary latch function for enhanced stability.
Carbon steel slide

Material and Finish:

Cup: Steel, zinc plated
Lever: Zinc alloy, powder coated
Button: Glass reinforced nylon

Performance Details:

Max. working load on side: 100 N
Operating temperature range: -40°C to 40°C
Flammability rating: UL-94-V0

Installation Notes:

Install assembly with Ø 3.4 (13) or 4 (.16) rivets

If you would like more information on these or other Southco products, please contact your Tower representative at 800.688.6937, or by using our online information request form.
